MLB Fire Pumps
- Commercial Real Estate: High-rises, office complexes, and large-scale commercial buildings.
- Industrial & Manufacturing Plants: Heavy industrial facilities with demanding safety needs.
- Energy Sector: Diverse infrastructure across the energy grid.
- Oil & Gas Operations: Hazardous and rigorous petroleum and gas facilities.
- Power Generation: Critical power plants requiring reliable protection.
FEATURES:
MODEL SERIES: MLB-5000-0250 series
MAKE: Multi-Leak Barrier – MLB

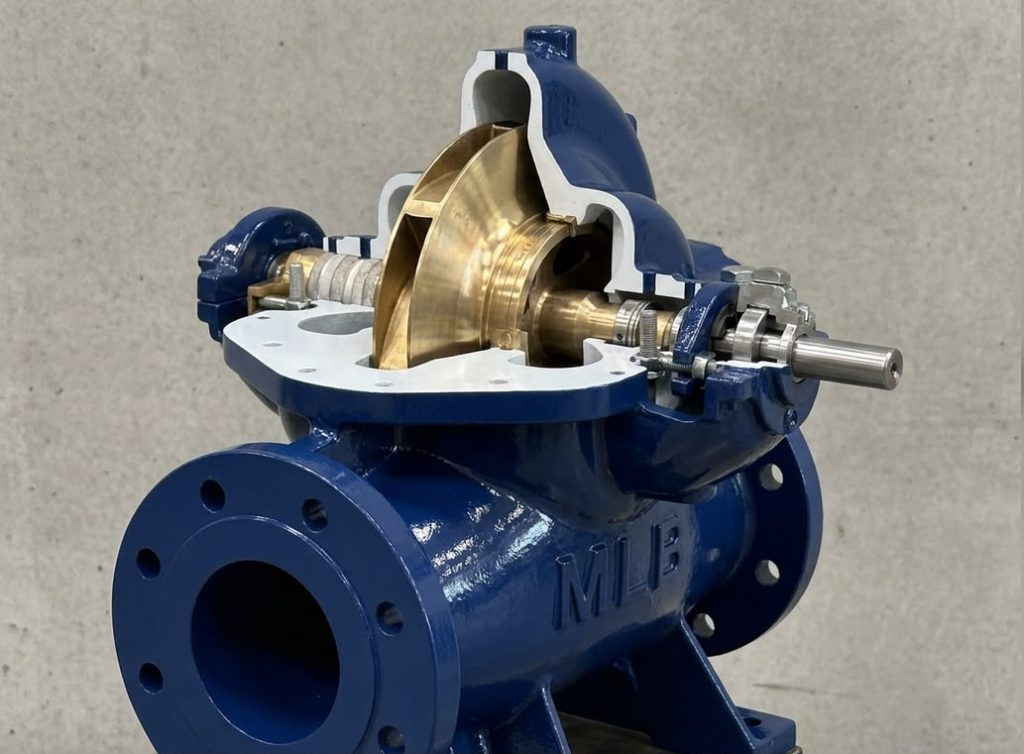

Built for Permanence: Crafted from high-density, 35,000 psi cast iron. By casting the bearing bracket supports directly into the lower casing, MLB Pump guarantees permanent alignment of all rotating parts, reducing wear and tear.
Maximum Efficiency, Minimum Leakage: Renewable bronze casing rings seal the internal chambers, preventing fluid recirculation. A standard tapped and plugged seal flush connection on the upper casing adds versatile system integration.
Vibration-Free Performance: The single-piece cast-bronze impeller is dynamically balanced to eliminate vibration. This ensures smooth hydraulic flow while dramatically extending the life of your bearings and mechanical seals.
Simplified Maintenance: Say goodbye to tedious downtime. The packed stuffing boxes feature 304 stainless steel split glands and swing-type bolts, making repacking fast and effortless.
Superior Corrosion Resistance: Replaceable bronze and 304 stainless steel sleeves completely shield the carbon steel shaft from wear and fluid exposure, fully sealed with robust O-rings.
100,000+ Hours of Reliable Operation: Standard grease-lubricated, single-row ball bearings are rated for a massive 100,000-hour average lifespan. For heavy-duty applications, double-row outboard thrust bearings are also available.
SPEC:
Flow Rate (Capacity): Up to 5,000 gpm (1,136 m3 /h)
Total Dynamic Head: Up to 250 ft (76 m)
Max Operating Pressure: Up 289 psi (20 bar)
Power Output: Up to 1,000 hp (745 kW)
Operating Temperature: Ambient range (subject to standard equipment limits)
Drive Options: Electric motors, diesel engines
Fluid Compatibility: Potable/non-potable water, saltwater/brine
Material Construction: Cast iron with bronze fitted components (standard); specialized materials available for seawater applications upon request
